MIG Spool Gun CST251

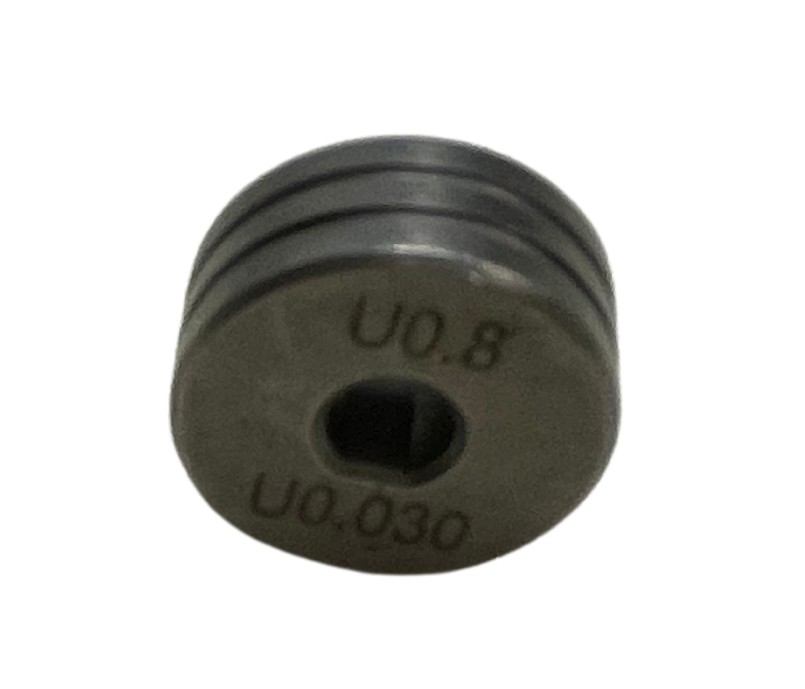

Successful welding with aluminum requires a stable arc. With its short feed distance, this spool gun provides a steady, reliable feed of the soft aluminum wire. Canaweld Spool guns improve the “feed ability” of aluminum and other type of wires that are difficult to feed, through the standard MIG gun, by locating a small 1 lb. 1/ 4-inch diameter spool of wire on a pistol-grip style gun. CST251 spool gun is a 200 A lightweight, well balanced semi-automatic spool gun, with dual groove drive rolls, heavy duty and all metal wire feeder and is easy to set up. It has been designed for easy and reliable aluminum wire feeding with a variety of CV power sources and engine-driven welders. The control connector is metal-made too. It features easy access to the drive assembly which reduces service time and allows for routine maintenance without disassembly of gun.

$395.00$495.00

Available options:
modelamplengthSKUPrice
Tweco® Style25010FtCWICL08131395
Tweco® Style25013FtCWICL08141445
Tweco® Style25020FtCWICL08161495

Description

Processes

  • MIG (GMAW)
  • Pulsed MIG (GMAW-P) with pulsing power source
  • FCAW

Wire Types

  • Aluminum
  • Steel
  • Flux Cored Wire

Industrial Applications

  • Trucks Trailers and Railcars
  • Travel and Cargo Trailers.
  • Recreational Vehicles.
  • Aerospace Hardware
  • Boat/Yacht Building
  • Fabrication
  • Automotive/Motorcycle Frames
  • Sports products – Scooters/Bicycles
  • Wheels
  • Furniture
  • Ladders and frames
  • Ship Decks
  • Sign Manufacturers
  • General Repair And Maintenance


Technical specification
Welding Output: 200 Amps at 60% Duty Cycle
Recommended Wire Diameter: For Aluminum: 0.030″/0.035″/0.040”/(3/64”) (0.8/0.9/1.0/1.2 mm)
For Solid wire: 0.023″/0.030″/0.035”/0.40” (0.6/0.8/0.9/1.0 mm)
For Flux Cored wire: 0.030″/0.035″/0.040” (0.8/0.9/1.0 mm)
Motor Voltage: 24 Volt DC
Head and Nozzle style: Tweco Style
Maximum Spool Size (Al, FCAW or Solid wire): 4″ /102 mm
Central Connector type: Euro connector
Copper Cable Length: 10/13/20 ft. (3/4/6 meter).
Weight (Gun Only): 2.71 Lb /1.23 Kg

No. Part Number Name QUANTITY
1 CWICS0789 Gas Nozzle #13/22-50 1
2 CWICU0008-58 Contact Tip 0.8/ 1/4-28×38 AL TW2 1
3 CWICK0680 Insulator 32 1
4 CWICF0077 Diffuser 52 1
5 CWICZ0686 Torch Head/ TW2 1
6 CWIZH0710 Frame/ Wire Drawing Welding Torch 1
7 CWIFT8151 Cylindrical pin #1.5×20 / Stainless Steel 1
8 CWIHQ0070 Trigger Red 1
9 CWIHJ0515 Switch CAP/PC 1
10 CWIHJ0511 Handle decorative board/ PA66 + 30 % GF 1
11 CWICV0600 MIG GRIP HANDLE/100/150/PA66 + 30 % GF 1
12 CWIHJ0189 Spool Gun reel assembly 1
13 CWIFT8966 Hexagon Screw M4 x 4 GB/T80 1
14 CWIFT0552 Screw M4 x 16 7
15 CWIHJ0777 Joint for MIG GRIP HANDLE 1
16 CWIFT8944 SPRING/LONG/FRONT 1
17 CWICN0943-01 COAXIAL CABLE/25 MMQ/DIAMETER 5 MM/4 WIRES/3M 1
18 CWIFT0960 SPRING SUPPORT/MIG WATER COOLING/BLACK 1
19 CWIHJ0940 BACK BOX HOLE FOR GAS AND WATER COOLING TORCH/BLACK 1
20 CWIHJ0097 GUN PLUG BRASS NUT FOR GAS AND WATER COOLING/BLACK 1
21 CWITB0059 EURO CENTRAL ADAPTER BODY / SPRING PINS 1
22 CWIHQ0367 CONTROL WIRE 4X0.5 MMQ 0.5
23 CWIHQ0490 CONNECTOR WF20J9TI1 1
24 CWIZT0071-02 LINER NUT / WITHOUT HOLE 1
25 CWIIC0635 LINER 4.0 x 2.0x 200MM 1
