Description
What Is Included

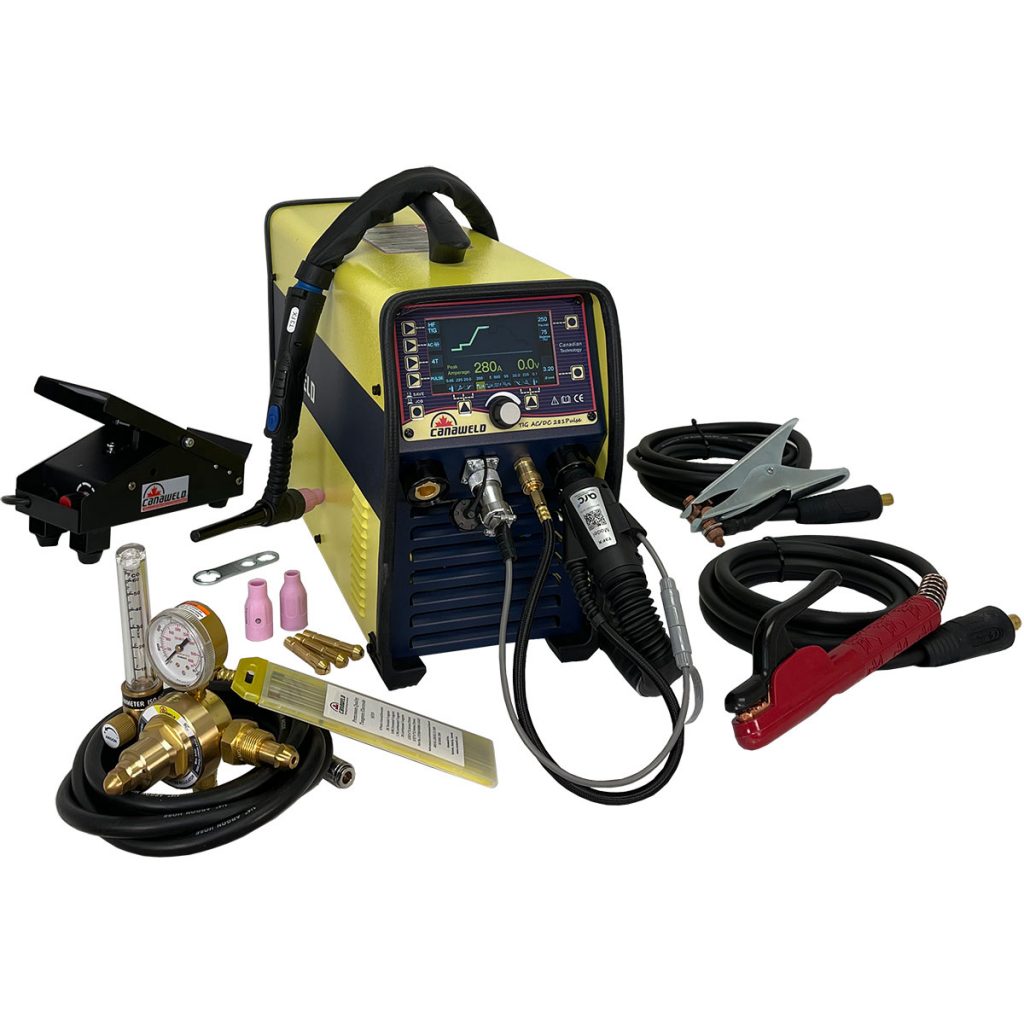

In "Air Cooled" Package you will get :
( Total value of $1,324.00 CAD accessories and consumables included!)
Ground Clamp Set
ALP1980462
Ground Clamp Set 280-320 A including: 10 ft. Welding Cable AWG 1 (42.4 mm), Cable Plug 35, Ground Clamp 400A
Electrode Holder Set
ALP1980463
Electrode holder Set 280-320 A including: 10 ft. welding cable AWG 1 (42.4 mm), Cable Plug 35, Electrode Holder EH401
TIG Torch T3
CWT3FX-S1-4M-SL-QGS4-MCB4-ATP18
Premium TIG Torch T3FX, Air cooled, 240 AMP, 12.5 ft, 9 Pin
TIG Consumable Kit
ALPTIGT3FXCON
Consumable Set for T3FX TIG TORCH
Gas Welding Hose
TLJ1080188
1/4" Argon Inert Hose (10 ft)
TIG Tungsten Electrode MIX of 10
CTE500-RGBW-116332018
Foot Pedal
TGJ2580472
Foot Pedal 9 Pin Connector for TIG AC/DC 281 Pulse
Argon/CO2 Regulator
CWFM-1400-60CF-AR
UL-Approved FM1400RH Series, 60 CF, Single Stage For Argon
In "WaterCooled" Package you will get :
( Total value of $2,704.20 CAD accessories and consumables included!)
Ground Clamp Set
ALP1980462
Ground Clamp Set 280-320 A including: 10 ft. Welding Cable AWG 1 (42.4 mm), Cable Plug 35, Ground Clamp 400A
Electrode Holder Set
ALP1980463
Electrode holder Set 280-320 A including: 10 ft. welding cable AWG 1 (42.4 mm), Cable Plug 35, Electrode Holder EH401
TIG Torch 18SC (Super Cool)
CWSG18SC-S1-12-4M
Tig Torch Water Cooled 12 ft
TIG Consumable Kit
ALPTIGCON20
TIG Consumable Standard Set for 20 Series Torch
Gas Welding Hose
TLJ1080188
1/4" Argon Inert Hose (10 ft)
TIG Tungsten Electrode MIX of 10
CTE500-RGBW-116332018
Foot Pedal
TGJ2580472
Foot Pedal 9 Pin Connector for TIG AC/DC 281 Pulse
Argon/CO2 Regulator
CWFM-1400-60CF-AR
UL-Approved FM1400RH Series, 60 CF, Single Stage For Argon
Cooling Unit
CGB10084320
Cooling Unit CU-H1 for TIG AC DC 281 Pulse
Features
- A 5-inch LCD screen allows both experienced and novice users to operate the device quickly and easily, ensuring correct setting and parameter selection, reducing parameter setting time, and increasing actual welding time.
- Capability of TIG welding on aluminum and steel workpieces up to 3/8 inch (9.5 mm) of thickness with a maximum output of 280 amps.
- AC Waveforms:
- Progressive square wave for increased torch speed, depth of penetration, and rapid cooling of weld pools
- Sine wave for simulating a conventional power source and reducing noise level
- Triangular wave for reducing the overall heat input and increasing the peak current to control the distortion of thin materials.
- Up to 10 memory locations to store important weld parameters.
- Adjustable soft welding start and minimal distortion on thinner materials.
- Adjustable powerful start which is required for thicker materials.
- Adjustable balance settings which provide full control to mix the cleaning and penetration sequences, during aluminum welding.
- High frequency (HF) for perfect arc starts and stability
- Tested in (104°F/40°C), designed for the toughest conditions.
- Digital control of all welding parameters.
- Amperage control is accessible by foot pedal.
- Pulse TIG welding allows for better arc control and reduces work piece distortion.
- Ideal for welding thin and thick materials.
- Excellent welding characteristics in Stick mode with the most rods
- Ability to use up to 165 feet (50 meters) leads without any power loss at the welding circuit.
- Digital adjustment of pre-flow, initial amperage, welding amperage, initial slope, pulse parameters, final slope, and post flow on LCD screen.
- Arc Force automatically selects the best welding arc dynamics (in Stick mode).
- Ability to pre-set all welding parameters.
- Fan cooled and thermally protected against overheating.
- Ability to communicate with Canaweld auxiliary cooling systems
- Metal face panel.
- Generator compatible.
- Comprehensive 4-Year Warranty.
- Innovative wind tunnel.
Technical Sheet
Process | Unit | TIG AC | TIG DC | Stick |
---|---|---|---|---|
Display Type | 5 inch LCD | |||
Input Voltage, Single Phase, 50/60 Hz | V | 208 to 240 (±10%) | ||
Primary Current@Max Welding Current | A | 50.5 | 50 | |
Maximum Primary Effective Current (I1 eff max) | A | 27.8 | 29 | |
Welding Current Range | A | 5 – 280 | 5 – 225 | |
Welding Current @ 30% Duty Cycle in 104°F (40°C) | A | 280 | 225 | |
Welding Current @ 60% Duty Cycle in 104°F (40°C) | A | 230 | 160 | |
Welding Current @ 100% Duty Cycle in in 104°F (40°C) | A | 180 | 140 | |
Open Circuit Voltage | V | 72 | ||
Stick Parameters | ||||
Stick Modes | AC and DC | |||
Arc Force | 0 – 10 | |||
Hot Start | 0 – 10 | |||
TIG Parameters | ||||
TIG Process Types | TIG HF , TIG Lift | |||
TIG Process Modes | Pulse, Stitch, Cold, No-Pulse | |||
TIG Output Control | 2T , 4T , Foot Pedal | |||
Pre-flow | sec. | 0.05 – 5.0 | ||
Initial Amperage | A | 5 – 280 | ||
Initial Slope | sec. | 0.0 – 20.0 | ||
Peak Welding Amperage | A | 5 – 280 | ||
Final Slope | sec. | 0.0 – 20.0 | ||
Final Amperage | A | 5 – 280 | ||
Post flow | sec. | 0.1 – 25 | ||
TIG Pulse Parameters | ||||
Pulse Functions | Pre Flow, Initial Amperage, Initial slope, Welding Amperage, Base Amperage, Pulse Duty Cycle, Pulse frequency, Final slope, Final Amperage, Post Flow | |||
Base Amperage | A | 5 – 280 | ||
Pulses Frequency | pps | 0.5 – 999 | ||
Pulse Duty Cycle | % | 5 – 95 | ||
TIG AC Parameters | ||||
AC Waveshape | Squarewave, Sine wave, Triangular wave | – | ||
AC Controls | Frequency , Balance | – | ||
Balance | % | 50 – 75 | ||
Frequency | Hz | 50 – 250 | ||
TIG Sequence Control Parameters | ||||
ON Time( Stitch and Cold) | sec. | 0.1 – 10.0 | ||
OFF Time( Stitch and Cold) | sec. | 0.1 – 10.0 | ||
Maximum Material Thickness (TIG) | 3/8 in. (9.5 mm) | |||
Maximum Electrode Diameter (STICK) | 3/16 in. (4.8 mm) | |||
Minimum Power of Generator | Kw | 12.5 | ||
Torch Cooling | Air / Water | |||
Weight | lb. (Kg) | 40 lb. (18 kg) | ||
Dimensions Including Handle (D, W, H) | in. (mm) | 23.6 x 8 x 15.7 inch (600 X 205 X 400 mm) |
CANAWELD RESERVES THE RIGHTS OF CHANGING THE SPECIFICATION WITHOUT NOTICE
Optional Accessories
TIG Torch 26 Series
CWT3FX-S1-4M-SL-ATP18
Premium TIG Torch T3FX, Air cooled, 240 AMP, 12.5 ft, 9 Pin
MSRP Price : $355.00 CAD
TIG Torch 18SC (Super Cool)
CWSG18SC-S1-25-8M
Tig Torch Water Cooled 25 ft
MSRP Price : $355.27 CAD
Electrode Holder Set
ALP1980468
Electrode holder Set 280-320 A including: 20 ft. welding cable AWG1 (42.4 mm), Cable Plug 35, Electrode Holder EH401
MSRP Price : $213.00 CAD
Electrode Holder Set
ALP1980469
Electrode holder Set 280-320 A including: 30 ft. welding cable AWG 1 (42.4 mm), Cable Plug 35, Electrode Holder EH401
MSRP Price : $263.00 CAD
Electrode Holder Set
ALP1980470
Electrode holder Set 280-320 A including: 50 ft. welding cable AWG 1 (42.4 mm), Cable Plug 35, Electrode Holder EH401
MSRP Price : $363.00 CAD
Ground Clamp Set
ALP1980459
Ground Clamp Set 280-320 A including: 20 ft. Welding Cable AWG 1 (42.4 mm), Cable Plug 35, Ground Clamp 400A
MSRP Price : $203.00 CAD
Ground Clamp Set
ALP1980471
Ground Clamp Set 280-320 A including: 30 ft. Welding Cable AWG 1 (42.4 mm), Cable Plug 35, Ground Clamp 400A
MSRP Price : $253.00 CAD
Ground Clamp Set
ALP1980472
Ground Clamp Set 280-320 A including: 50 ft. Welding Cable AWG 1 (42.4 mm), Cable Plug 35, Ground Clamp 400A
MSRP Price : $353.00 CAD
Foot Pedal
TGJ2580472
Foot Pedal 9 Pin Connector for TIG AC/DC 281 Pulse
MSRP Price : $398.00 CAD
Argon/CO2 Regulator
CW-RMV-250-30LM-AR
UL-Approved MV250 Series, Single Stage For Argon/CO2, Mix
MSRP Price : $129.00 CAD
Argon/CO2 Regulator
CWFM-1400-60CF-AR
UL-Approved FM1400RH Series, 60 CF, Single Stage For Argon
MSRP Price : $148.00 CAD
Consumables
TIG Collet
CWU10N23
STANDARD COLLET 1/16" (1.6 MM BORE) for TIG 17, 18, 26, and 18 SUPER COOLED
MSRP Price : $24.85 CAD
TIG Collet
CWU10N24
STANDARD COLLET 3/32" (2.4 MM BORE) for TIG 17, 18, 26, and 18 SUPER COOLED
MSRP Price : $24.85 CAD
TIG Collet
CWU10N25
STANDARD COLLET 1/8" (3.2 MM BORE) for TIG 17, 18, 26, and 18 SUPER COOLED
MSRP Price : $24.85 CAD
TIG Ceramic Cup and Gas Lens
CWU54N14
(CLASSIC AND ERGO)TIG 17, 18, 26 (ERGO)18SC
MSRP Price : $34.00 CAD
TIG Ceramic Cup and Gas Lens
CWU54N16
(CLASSIC AND ERGO)TIG 17, 18, 26 (ERGO)18SC
MSRP Price : $34.00 CAD

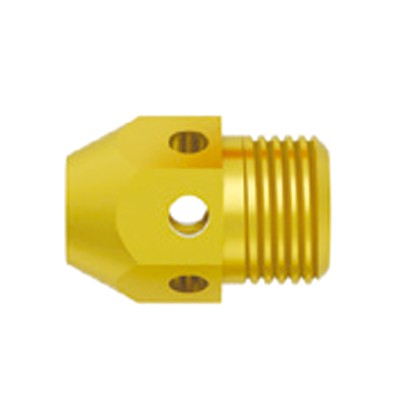

TIG Collect Body and Gas Lens Body
CWUNCB-53
Standard Collet Body 3.4 MM BORE (for TIG 18 SC)
MSRP Price : $22.00 CAD
TIG Collect Body and Gas Lens Body
CWT3CB16
Collect Body 1.6MM BORE (for TIG T3/T5W)
MSRP Price : $0.00 CAD
TIG Collect Body and Gas Lens Body
CWT3CB24
Collect Body 2.4MM BORE (for TIG T3/T5W)
MSRP Price : $0.00 CAD
TIG Collect Body and Gas Lens Body
CWT3CB32
Collect Body 3.2MM BORE (for TIG T3/T5W)
MSRP Price : $0.00 CAD

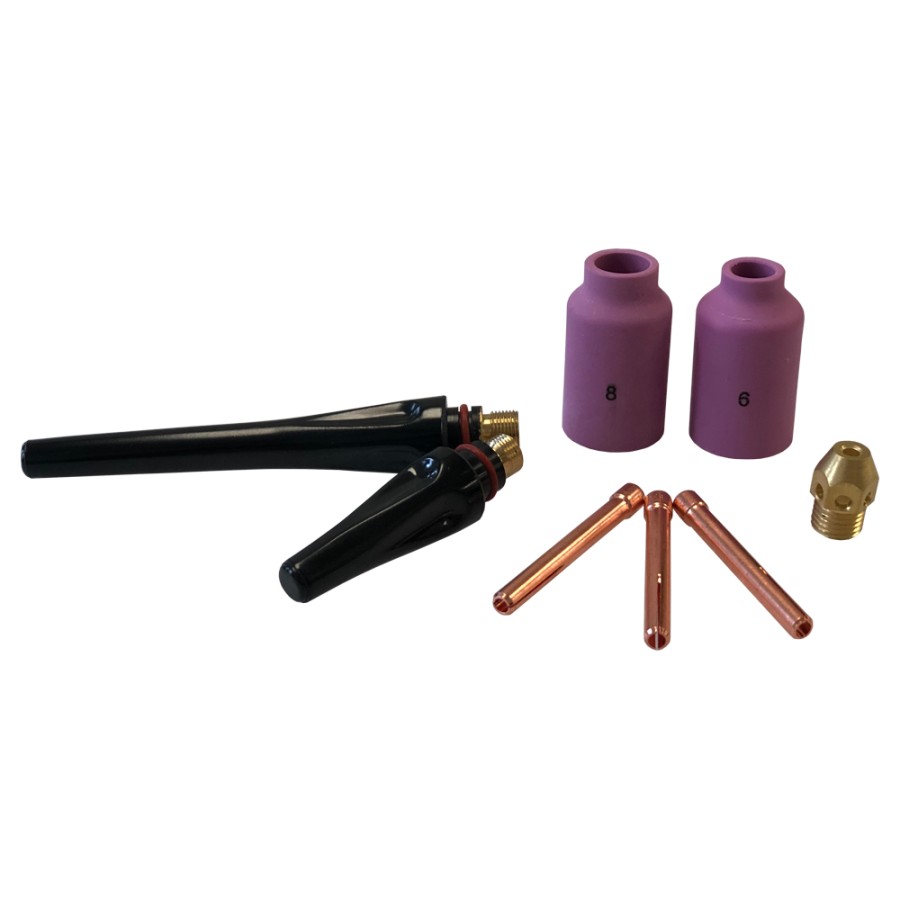

TIG Consumable Kit
ALPTORCHCON18
Consumable Set for TIG TORCH 18 Series
MSRP Price : $28.00 CAD
Catalogs & Videos
Area of Use / Weldable Metals
Area of Use
- Aerospace
- Aluminum Industries
- Automotive Parts and Bodies
- Passenger Car Industries
- Training school
- Metal Building
- Medical Industries
- Railcar
- Boat/Yacht
- Shipbuilding
- Light Fabrication
- Food Industries and High Purity Processing
- Mechanical Contractors
- Installation
- Restoring
- Maintenance and repair-field operation
- Plumbing & HVAC
- Civil Construction
- Infrastructure & roofing
- Work/Service Trucks
- Farm and Ranch
Weldable Metals
- Steel
- Stainless Steel
- Chrome Moly
- Aluminum
- Titanium
- Copper
- Virtually any metal
