STUD Welding

This process uses a direct-current arc from a capacitor. The weld time in this process is between 1 and 6 milliseconds. Capacitor discharge stud welding with the latest equipment can create a weld without burn through showing on the opposite side of very thin metals. CD stud welding is often used for smaller diameter studs and pins, as well as on non-standard materials and for accuracy.

STUD WELDER CAD 81

STUD WELDER CAD 81

Process :

STUD WELDING (Capacitor Discharge)

Weld Range :

US Stud Size #4 – 5/16”, Metric Stud Size (M3-M8), Stud diameter 0.112″ – 0.312″

Input Power :

1~115/230, 50/60Hz (internally switchable)
Capacitance: 81,000uf

Weldable Metals :

Steel
Stainless Steel
Aluminium

Weight and Dimension :

25lbs. 12” X 5” x 12”
11.3Kg. 30.5 X 12.7 x 30.5 Cm

Adjustable Legs :

To Accommodate fasteners up to 3″ Long

Product Description

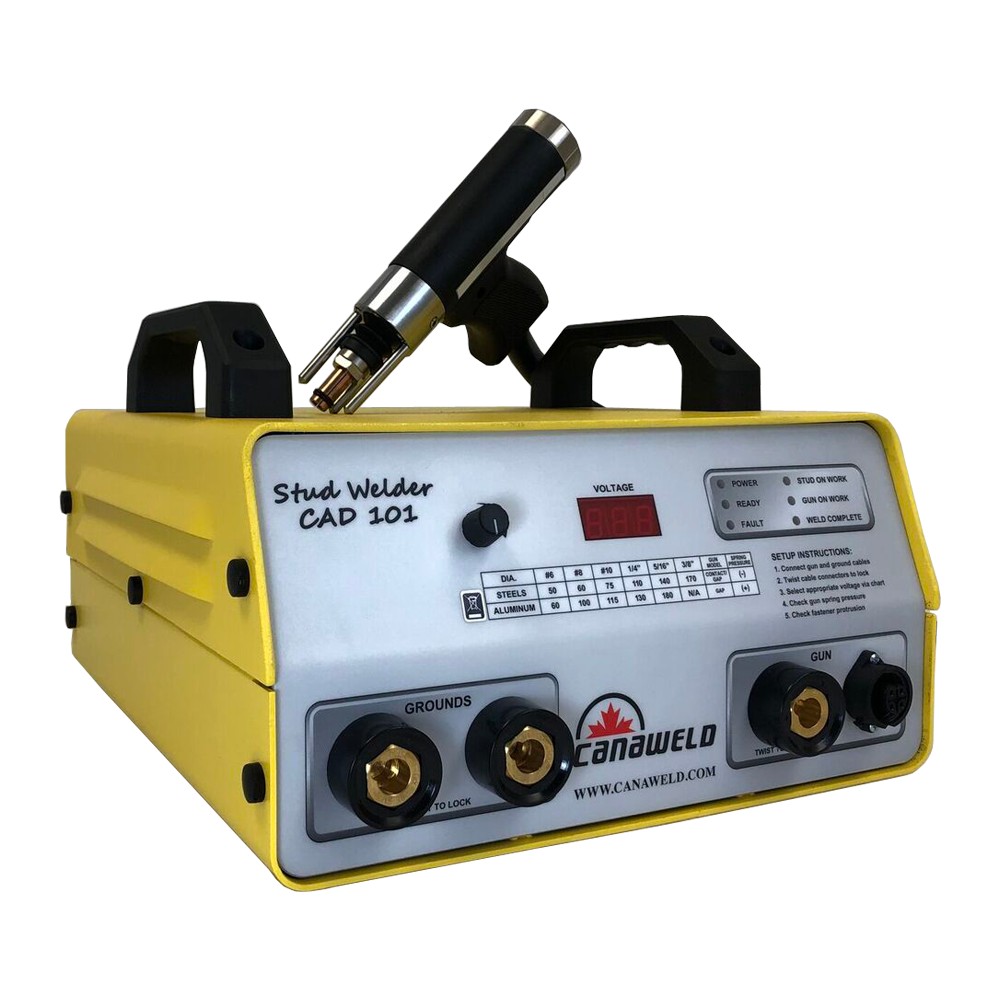

STUD WELDER CAD 101

STUD WELDER CAD 101

Process :

STUD WELDING (Capacitor Discharge)

Weld Range :

US Stud Size #6 – 3/8”, Metric Stud Size (M3-M10), Stud diameter 0.125″ – 0.375″

Input Power :

1~115/230, 50/60Hz (internally switchable)
Capacitance: 162,000uf

Weldable Metals :

Steel
Stainless Steel
Aluminium

Weight and Dimension :

37lbs. 13” X 6.5” x 15.5”
17Kg. 33 X 16.5 x 39.9 Cm

Adjustable Legs :

To Accommodate fasteners up to 3″ Long

Product Description
