Description

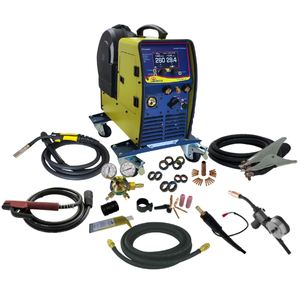

What Is Included
In "Silver" Package you will get:
( Total value of $1,388.96 accessories and consumables included!)
Ground Clamp Set
ALP2280505
Ground Clamp Set 230-270 A including: 10 ft. Welding Cable AWG 2 (33.6 mm), Cable Plug 35, Ground Clamp 400A
Electrode Holder Set
ALP2280099
Electrode holder Set 230-270 A including: 10ft. welding cable AWG 2 (33.6 mm), Cable Plug 35, Electrode Holder EH301
MIG Gun M300 Series
CWGPGTW300-15E
Gas Welding Hose
TLJ1080188
1/4" Argon Inert Hose (10 ft)
Drive Rolls Set
CW211012
FEED ROLL 37 MM FOR HARD DRIVE (1.0 +1.2 ) RED + ORANGE
Drive Rolls Set
CW210911
Set of 2 Feed Rolls 0.035-0.045 Inch Or 0.9-1.1 mm V Groove (Hard Wire)
Drive Rolls Set
CW241012
FEED ROLL 37 MM FOR HARD DRIVE (1.0+1.2 MM) RED ORANGE
Drive Rolls Set
CW240911
Set of 2 Pressure Rolls flat 0.035-0.045 Inch Or 0.9-1.1 mm (Hard Wire)
Drive Rolls Set
CW261216
FEED ROLL 37 MM TWIN FOR ALU WIRE (1.2+1.6 MM YELLOW +ORANGE)
MIG Adjustable Nozzle Insulator Tweco® Style
CWU34A
MIG Adjustable Nozzle Insulator, Tweco® style, 300 & 400 AMP
MIG Gun Tweco® Style Consumable Kits
ALPCON4001
MIG TORCH Tweco® Style 300A Consumable Standard Set
Spool Holder Adapter 12" to 8"
CGA2890928
Argon/CO2 Regulator
CW-RMV-250-30LM-AR
UL-Approved MV250 Series, Single Stage For Argon/CO2, Mix
Upgrade “Silver” to “Silver Plus” and get additional :
( Total value of $1,568.95 accessories and consumables included!)
Upgrade "Silver" to "Gold" and get additional :
( Total value of $1,674.96 accessories and consumables included!)
TIG Torch 26
CAN-UWP26FX-12-0B-MSL-GS4-ZS
CLASSIC TIG 26 TORCH, 12FT C/W ML3550 END, Zip Cover and Snap on
TIG Consumable Kit
ALPTORCHCON26
Consumable Set for TIG TORCH 26 Series
TIG Tungsten Electrode MIX of 6
CTE500-RGB-116332
Upgrade "Silver" to "Aluminum" and get additional : ( Total value of $942.76 accessories and consumables included!)
( Total value of $2,050.14 accessories and consumables included!)
MIG Spool Gun SM300 Series
CWGPG-PLSPTW300-24-P10-60TE
Tweco® Style
Drive Rolls for MIG Spool Gun
CWUGP7020W-08U
SM300
Drive Rolls for MIG Spool Gun
CWUGP7020W-08
SM300
Drive Rolls for MIG Spool Gun
CWUGP7020W-10U
SM300
Drive Rolls for MIG Spool Gun
CWUGP7020W-09
SM300
MIG Gun Tweco® Style Consumable Kits
ALPCON4001AL
MIG TORCH Tweco® Style 300A Spool Gun Consumable Set/ Aluminum Package

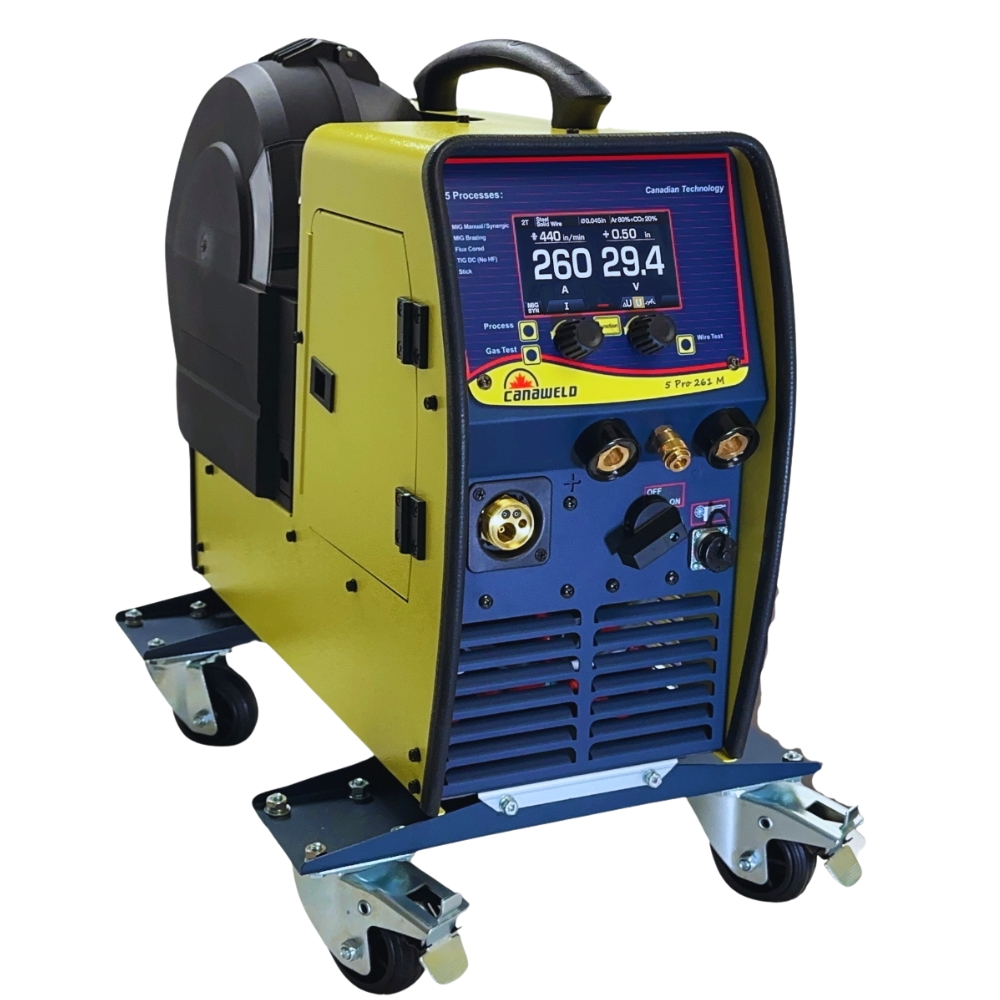

Features
- 5-in-1 Functionality: Supports MIG Synergic/ MIG Manual, MIG Brazing, Flux-Cored, TIG DC (without HF), and Stick Welding, offering maximum flexibility for diverse applications.
- Rugged Yet Lightweight Design: Metal face panel with flip doors for easy access and enhanced durability, ideal for on-site and field welding.
- Versatile Polarity Options: Manual switching between gas and gasless wires, Stick electrodes, and Lift TIG welding for added convenience.
- Innovative Wind Tunnel System: Minimizes dust and debris intake, increasing durability and extending machine lifespan.
- Auto-Control Fan Cooling: Activates only when necessary, reducing dust buildup, noise, and overheating risks, while increasing power supply efficiency and fan longevity.
- Extreme Duty Cycle Testing: Designed for continuous operation at 104°F (40°C) and 50% humidity, ensuring superior reliability in harsh conditions.
- Advanced Heat Control: Reduces distortion while maintaining consistent penetration for high-quality welds.
- Clean Welds with Minimal Spatter: Optimized arc control produces stronger, cleaner joints.
- User-Friendly LCD Display: Provides a clear, intuitive interface, allowing quick adjustments for both novice and professional welders.
- Program Memory: Save and recall up to 10 favorite settings, improving efficiency and streamlining workflow.
- 4-Year Warranty: Backed by Canaweld’s industry-leading support, ensuring long-term reliability.

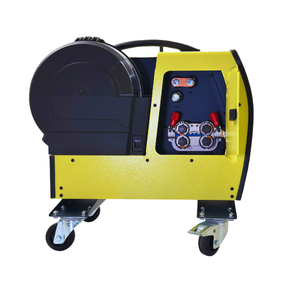

- Canaweld Professional Wire Feeder: Ensures precise and consistent wire feeding, optimizing weld quality and reducing feed-related issues.
- Comprehensive MIG Controls: Full control over wire speed, voltage, trigger mode (2T/4T), burnback, pre-flow, post-flow, and slow feed, with additional inductance adjustment for optimal tuning.
- Spool Gun Mode: Enhances performance when welding soft metals like aluminum with thin-gauge wires, ensuring smooth feeding and clean welds.
- MIG Synergic Technology: Automatically selects and adjusts optimal welding parameters for MIG, MIG Brazing, and Flux-Cored welding, making setup effortless while delivering superior performance for welders of all skill levels.
- High-Performance MIG Output: 260A at 60% duty cycle and 230A at 100% duty cycle (at 104°F/40°C), ideal for demanding industrial environments.
- Arc Force Control: Automatically adjusts arc dynamics to enhance arc stability, maintain a steady arc, and prevent electrode sticking, ensuring a smoother welding experience.
- Voltage Reduction Device (VRD): A built-in safety feature that lowers open-circuit voltage (OCV) to minimize electric shock risks, while ensuring optimal voltage when welding.
Technical Sheet
| Process | MIG/Flux cored | TIG DC (Lift Arc) | Stick Electrode | MIG /Flux cored | TIG DC (Lift Arc) | Stick Electrode |
|---|---|---|---|---|---|---|
| Input Voltage, Single Phase, 50/60 Hz | 208 to 240 V(±10%) | 105 to 120 V(±10%) | ||||
| Primary Current@Max Welding Current | 37 A | 27 A | 38.5 A | 37 A | 26.5 A | 35 A |
| Maximum Primary Effective Current (I1 eff max) | 30 A | 27 A | 30 A | 27.5 | 26.5 | 27.5 |
| Programming and Saving Parameters ) | Up to 10 JOBs | |||||
| Technology of Adjustment (Manual/Synergic) | Manual or Synergic | |||||
| Welding Current Range | 30 – 260 A | 10 – 250 A | 20 – 250 A | 30 – 160 A | 10 – 150 A | 20 – 130 A |
| Duty Cycle @ Rated Current in 104° F (40° C) | 60%@260A | 100%@250A | 60%@250A | 30%@160A | 100%@150A | 60%@130A |
| Welding Current @ 100% Duty Cycle in 104° F (40° C) | 230 A | 250 A | 210 A | 130 A | 150 A | 110 A |
| Welding Current @ 60% Duty Cycle in 104° F (40° C) | 260 A | – | 250 A | 160 A | – A | 130 A |
| Open Circuit Voltage : Volt | 99 V | 99 V | ||||
| Solid Steel Wire Size Range : inch (mm) | 0.030 – 0.045 in (0.8 – 1.2 mm) | 0.030 – 0.040 in (0.8 – 1 mm) | ||||
| Stainless steel Wire Size Range : inch (mm) | 0.035 – 0.045 in (0.9 – 1.2 mm) | 0.035 – 0.040 in (0.9 – 1.0 mm) | ||||
| Flux-cored Wire Size Range : inch (mm) | 0.035 – 0.045 in (0.9 – 1.2 mm) | 0.035 – 0.040 in (0.8 – 1.0 mm) | ||||
| Aluminum Wire Size Range : inch (mm) | 0.035 – 0.045 in (0.9 – 1.2 mm) | 0.035 – 0.040 in (0.9 – 1.2 mm) | ||||
| Max Wire Feeder speed : ipm (m/min) | 944 ipm (24 m/min) | 944 ipm (24 m/min) | ||||
| Wire Feeder Mechanism Material | Metal | |||||
| Wire Spool Size : inch (mm) | 8 or 12 inch (203 or 305 mm) | |||||
| Weight : lb. (Kg) | 59.5 lb. (27 Kg) | |||||
| Dimensions Including Handle (D, W, H) : inch (mm) | 26 x 10.2 x 19.2 inch (660 x 260 x 490 mm) | |||||
CANAWELD RESERVES THE RIGHTS OF CHANGING THE SPECIFICATION WITHOUT NOTICE
Optional Accessories
MIG Spool Gun SMH360 Series - Binzel Model
CWGPG-PGSP360A-24-P10-60BE
MSRP Price : $898.00
Electrode Holder Set
ALP1980468
Electrode holder Set 280-320 A including: 20 ft. welding cable AWG1 (42.4 mm), Cable Plug 35, Electrode Holder EH401
MSRP Price : $213.00
Electrode Holder Set
ALP1980469
Electrode holder Set 280-320 A including: 30 ft. welding cable AWG 1 (42.4 mm), Cable Plug 35, Electrode Holder EH401
MSRP Price : $263.00
Electrode Holder Set
ALP1980470
Electrode holder Set 280-320 A including: 50 ft. welding cable AWG 1 (42.4 mm), Cable Plug 35, Electrode Holder EH401
MSRP Price : $363.00
Ground Clamp Set
ALP1980459
Ground Clamp Set 280-320 A including: 20 ft. Welding Cable AWG 1 (42.4 mm), Cable Plug 35, Ground Clamp 400A
MSRP Price : $203.00
Ground Clamp Set
ALP1980471
Ground Clamp Set 280-320 A including: 30 ft. Welding Cable AWG 1 (42.4 mm), Cable Plug 35, Ground Clamp 400A
MSRP Price : $253.00
Ground Clamp Set
ALP1980472
Ground Clamp Set 280-320 A including: 50 ft. Welding Cable AWG 1 (42.4 mm), Cable Plug 35, Ground Clamp 400A
MSRP Price : $353.00
TIG Torch 26
CAN-UWP26FX-25-0B-MSL-GS4-ZS
CLASSIC TIG 26 TORCH, 25FT C/W ML3550 END, Zip Cover and Snap on
MSRP Price : $557.00
MIG Gun Tweco® Style Consumable Kits
ALPCON4001
MIG TORCH Tweco® Style 300A Consumable Standard Set
MSRP Price : $29.98
TIG Consumable Kit
ALPTORCHCON26
Consumable Set for TIG TORCH 26 Series
MSRP Price : $28.00
Argon/CO2 Regulator
CW-RMV-250-30LM-AR
UL-Approved MV250 Series, Single Stage For Argon/CO2, Mix
MSRP Price : $129.00
Consumables
Drive Rolls Set
CW280911
Set of 4 Feed Rolls 0.035-0.045 Inch Or 0.9-1.1 mm Knurled Groove, For Flux Cored
MSRP Price : $188.00
Drive Rolls Set
CW260911
Set of 4 Feed Rolls 0.035-0.045 Inch Or 09-1.1 mm U Groove For Aluminum
MSRP Price : $188.00
MIG Gun Tweco® Style Consumable Kits
ALPCON4001
MIG TORCH Tweco® Style 300A Consumable Standard Set
MSRP Price : $29.98
Catalogs & Videos
Area of Use / Weldable Metals
Area of Use
- •Aerospace Industrye
- •Automotive (Parts and Body Manufacturing)
- •Heavy and Medium-Duty Fabrication
- •Boat and Yacht Construction
- •Food and Beverage Equipment Manufacturing
- •Pharmaceutical and Medical Equipment
- •Pressure Vessels
- •Civil and General Construction
- •Railcar and Train Manufacturing
- •Service and Work Trucks
- •Vocational Training Schoolsg
- •Plumbing and HVAC Systems
- •Mechanical Contractors
- •Installation
- •Restoring
- •Maintenance and repair-field operation
- •Farm and Ranch
Weldable Metals
- Steel
- Stainless Steel
- Aluminium (with Spool Gun)
- Chrome Moly
- Titanium
- Copper
