Description
What Is Included
In "Silver" Package you will get:
( Total value of $1,212.96 accessories and consumables included!)
Ground Clamp Set
ALP1980462
Ground Clamp Set 280-320 A including: 10 ft. Welding Cable AWG 1 (42.4 mm), Cable Plug 35, Ground Clamp 400A
Electrode Holder Set
ALP1980463
Electrode holder Set 280-320 A including: 10 ft. welding cable AWG 1 (42.4 mm), Cable Plug 35, Electrode Holder EH401
MIG Gun M300 Series
CWGPGTW300-15E
Gas Welding Hose
TLJ1080188
1/4" Argon Inert Hose (10 ft)
Drive Rolls Set
CW211012
FEED ROLL 37 MM FOR HARD DRIVE (1.0 +1.2 ) RED + ORANGE
Drive Rolls Set
CW210911
Set of 2 Feed Rolls 0.035-0.045 Inch Or 0.9-1.1 mm V Groove (Hard Wire)
Drive Rolls Set
CW241012
FEED ROLL 37 MM FOR HARD DRIVE (1.0+1.2 MM) RED ORANGE
Drive Rolls Set
CW240911
Set of 2 Pressure Rolls flat 0.035-0.045 Inch Or 0.9-1.1 mm (Hard Wire)
Drive Rolls Set
CW261216
FEED ROLL 37 MM TWIN FOR ALU WIRE (1.2+1.6 MM YELLOW +ORANGE)
MIG Adjustable Nozzle Insulator Tweco® Style
CWU34A
MIG Adjustable Nozzle Insulator, Tweco® style, 300 & 400 AMP
MIG Gun Tweco® Style Consumable Kits
ALPCON4001
MIG TORCH Tweco® Style 300A Consumable Standard Set
Spool Holder Adapter 12" to 8"
CGA2890928
Argon/CO2 Regulator
CW-RMV-250-30LM-AR
UL-Approved MV250 Series, Single Stage For Argon/CO2, Mix
Upgrade "Silver" to "Gold" and get additional :
( Total value of $1,641.96 accessories and consumables included!)
TIG Torch 26
CAN-UWP26FX-12-0B-MSL-GS4-ZS
CLASSIC TIG 26 TORCH, 12FT C/W ML3550 END, Zip Cover and Snap on
TIG Consumable Kit
ALPTORCHCON26
Consumable Set for TIG TORCH 26 Series
TIG Tungsten Electrode MIX of 6
CTE500-RGB-116332
Upgrade "Silver" to "Aluminum" and get additional :
( Total value of $2,017.14 accessories and consumables included!)
MIG Spool Gun SM300 Series
CWGPG-PLSPTW300-24-P10-60TE
Tweco® Style
Drive Rolls for MIG Spool Gun
CWUGP7020W-08U
SM300
Drive Rolls for MIG Spool Gun
CWUGP7020W-08
SM300
Drive Rolls for MIG Spool Gun
CWUGP7020W-10U
SM300
Drive Rolls for MIG Spool Gun
CWUGP7020W-09
SM300
MIG Gun Tweco® Style Consumable Kits
ALPCON4001AL
MIG TORCH Tweco® Style 300A Spool Gun Consumable Set/ Aluminum Package
Features
- •5-in-1 Versatility: MIG Pulse, MIG Double Pulse, Standard MIG, Stick, TIG DC (Lift Start), and MIG Brazing.
- •Precision Welding: Advanced pulse tech minimizes distortion on thin metals and ensures deep penetration on thick materials.
- •Aluminum Specialist: Ideal for 4XXX and 5XXX series, delivering spatter-free welds with a perfect bead.
- •MIG Pulse/Double Pulse: Reduces spatter and enhances weld quality with superior heat management and control.
- •SAW Alternative: Portable solution for various positions, complex geometries, and field repairs.
- •Synergic Control: Auto-selects optimal parameters for effortless setup and consistent results.
- •Heavy-Duty: 260 A @ 60% duty cycle, 230 A @ 100% at 104°F (40°C).
- •User-Friendly: 5-inch LCD, with memory for 10 favorite settings..
- •Portable & Robust: Lightweight, generator-compatible, and durable for on-site work.
- •Versatile Polarity: Manual polarity change for gas/gasless wires, Stick, and Lift TIG.

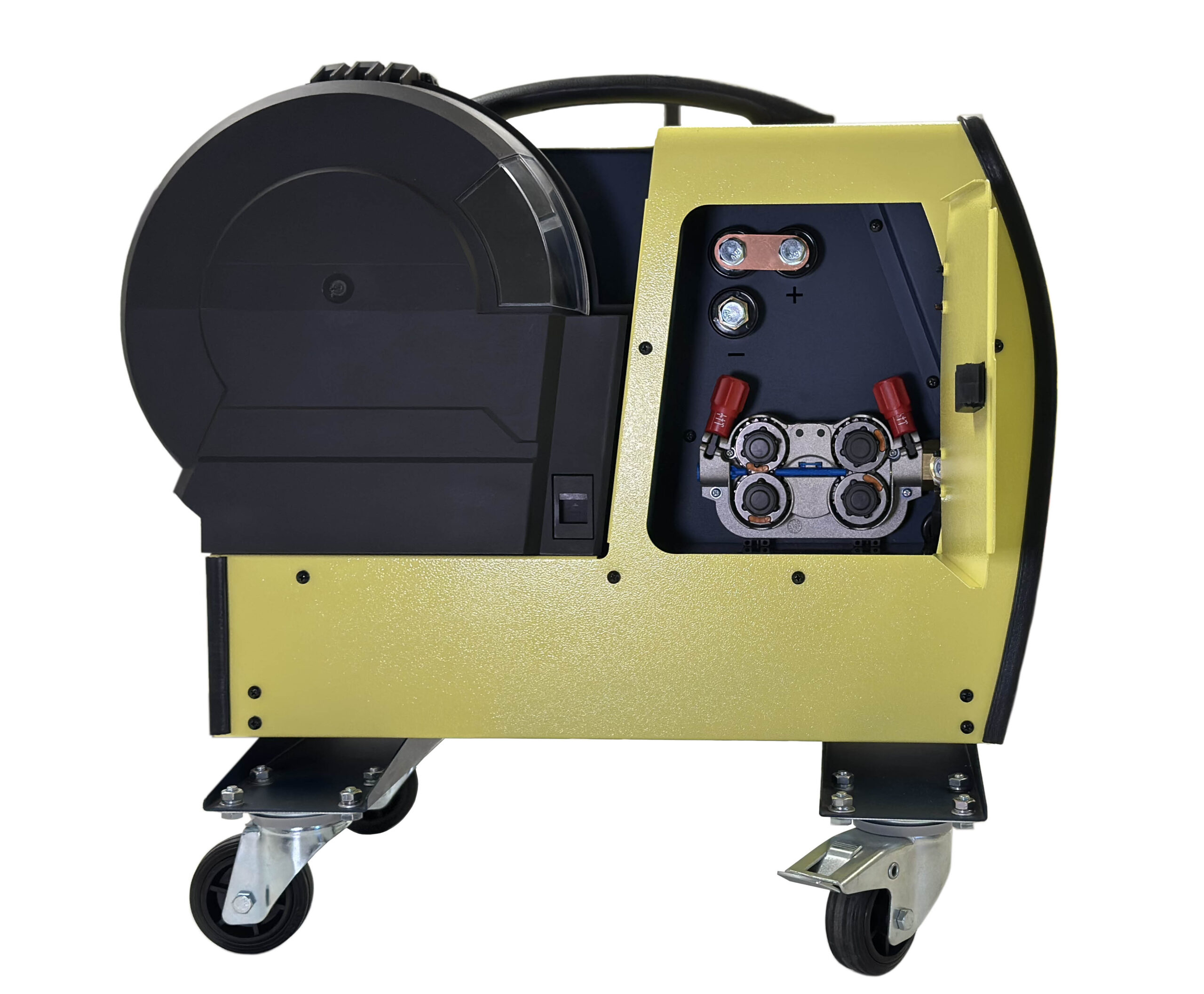

- •Pro Wire Feeding: Professional Canaweld Four-roll feeder for trouble free feeding.
- •Efficient Cooling: Auto-switching fan reduces noise and dust intake.
- •Easy Mobility: Lockable swivel casters and flip doors for quick access.
- •Durable Build: Metal face panel for enhanced durability.
- •4-Year Warranty: Comprehensive coverage for peace of mind.
Technical Sheet
| Process | MIG Pulse/ Double Pulse/Flux cored | TIG DC (Lift Arc) | Stick Electrode | MIG Pulse/ Double Pulse/Flux cored | TIG DC (Lift Arc) | Stick Electrode |
|---|---|---|---|---|---|---|
| Input Voltage, Single Phase, 50/60 Hz | 208 to 240 V(±10%) | 105 to 120 V(±10%) | ||||
| Primary Current@Max Welding Current | 37 A | 27 A | 38.5 A | 37 A | 26.5 A | 35 A |
| Maximum Primary Effective Current (I1 eff max) | 30 A | 27 A | 30 A | 27.5 | 26.5 | 27.5 |
| Programming and Saving Parameters ) | Up to 10 JOBs | |||||
| Technology of Adjustment (Manual/Synergic) | Manual or Synergic | |||||
| Welding Current Range | 30 – 260 A | 10 – 250 A | 20 – 250 A | 30 – 160 A | 10 – 150 A | 20 – 130 A |
| Duty Cycle @ Rated Current in 104° F (40° C) | 60%@260A | 100%@250A | 60%@250A | 60%@160A | 100%@150A | 60%@130A |
| Welding Current @ 100% Duty Cycle in 104° F (40° C) | 230 A | 250 A | 210 A | 130 A | 150 A | 110 A |
| Welding Current @ 60% Duty Cycle in 104° F (40° C) | 260 A | – | 250 A | 160 A | – A | 130 A |
| Open Circuit Voltage : Volt | 99 V | 99 V | ||||
| Solid Steel Wire Size Range : inch (mm) | 0.030 – 0.045 in (0.8 – 1.2 mm) | 0.030 – 0.040 in (0.8 – 1 mm) | ||||
| Stainless steel Wire Size Range : inch (mm) | 0.035 – 0.045 in (0.9 – 1.2 mm) | 0.035 – 0.040 in (0.9 – 1.0 mm) | ||||
| Flux-cored Wire Size Range : inch (mm) | 0.035 – 0.045 in (0.9 – 1.2 mm) | 0.035 – 0.040 in (0.8 – 1.0 mm) | ||||
| Aluminum Wire Size Range : inch (mm) | 0.035 – 0.045 in (0.9 – 1.2 mm) | 0.035 – 0.040 in (0.9 – 1.2 mm) | ||||
| Max Wire Feeder speed : ipm (m/min) | 944 ipm (24 m/min) | 944 ipm (24 m/min) | ||||
| Wire Feeder Mechanism Material | Metal | |||||
| Wire Spool Size : inch (mm) | 8 or 12 inch (203 or 305 mm) | |||||
| Weight : lb. (Kg) | 59.5 lb. (27Kg) | |||||
| Dimensions Including Handle (D, W, H) : inch (mm) | 26 x 10.2 x 19.2 inch (660 x 260 x 490 mm) | |||||
CANAWELD RESERVES THE RIGHTS OF CHANGING THE SPECIFICATION WITHOUT NOTICE
Optional Accessories
MIG Spool Gun SMH360 Series - Binzel Model
CWGPG-PGSP360A-24-P10-60BE
MSRP Price : $898.00
Electrode Holder Set
ALP1980468
Electrode holder Set 280-320 A including: 20 ft. welding cable AWG1 (42.4 mm), Cable Plug 35, Electrode Holder EH401
MSRP Price : $213.00
Electrode Holder Set
ALP1980469
Electrode holder Set 280-320 A including: 30 ft. welding cable AWG 1 (42.4 mm), Cable Plug 35, Electrode Holder EH401
MSRP Price : $263.00
Electrode Holder Set
ALP1980470
Electrode holder Set 280-320 A including: 50 ft. welding cable AWG 1 (42.4 mm), Cable Plug 35, Electrode Holder EH401
MSRP Price : $363.00
Ground Clamp Set
ALP1980459
Ground Clamp Set 280-320 A including: 20 ft. Welding Cable AWG 1 (42.4 mm), Cable Plug 35, Ground Clamp 400A
MSRP Price : $203.00
Ground Clamp Set
ALP1980471
Ground Clamp Set 280-320 A including: 30 ft. Welding Cable AWG 1 (42.4 mm), Cable Plug 35, Ground Clamp 400A
MSRP Price : $253.00
Ground Clamp Set
ALP1980472
Ground Clamp Set 280-320 A including: 50 ft. Welding Cable AWG 1 (42.4 mm), Cable Plug 35, Ground Clamp 400A
MSRP Price : $353.00
TIG Torch 26
CAN-UWP26FX-25-0B-MSL-GS4-ZS
CLASSIC TIG 26 TORCH, 25FT C/W ML3550 END, Zip Cover and Snap on
MSRP Price : $557.00
MIG Gun Tweco® Style Consumable Kits
ALPCON4001
MIG TORCH Tweco® Style 300A Consumable Standard Set
MSRP Price : $29.98
TIG Consumable Kit
ALPTORCHCON26
Consumable Set for TIG TORCH 26 Series
MSRP Price : $28.00
Argon/CO2 Regulator
CW-RMV-250-30LM-AR
UL-Approved MV250 Series, Single Stage For Argon/CO2, Mix
MSRP Price : $129.00
Consumables
TIG Ceramic Cup and Gas Lens
CWU10N46
(CLASSIC AND ERGO )TIG 17, 18, 26
MSRP Price : $10.00
TIG Ceramic Cup and Gas Lens
CWU10N47
(CLASSIC AND ERGO )TIG 17, 18, 26
MSRP Price : $10.00
TIG Ceramic Cup and Gas Lens
CWU10N48
(CLASSIC AND ERGO )TIG 17, 18, 26
MSRP Price : $10.00
TIG Collect Body and Gas Lens Body
CWU10N31
Standard Collet Body 3/32" (2.4 MM BORE) (for TIG 17, 18, and 26)
MSRP Price : $21.00
TIG Collect Body and Gas Lens Body
CWU10N32
Standard Collet Body 1/8" (3.2 MM BORE) (for TIG 17, 18, and 26)
MSRP Price : $21.00
TIG Collet
CWU10N23
STANDARD COLLET 1/16" (1.6 MM BORE) for TIG 17, 18, 26, and 18 SUPER COOLED
MSRP Price : $24.85
TIG Collet
CWU10N24
STANDARD COLLET 3/32" (2.4 MM BORE) for TIG 17, 18, 26, and 18 SUPER COOLED
MSRP Price : $24.85
Drive Rolls Set
CW280911
Set of 4 Feed Rolls 0.035-0.045 Inch Or 0.9-1.1 mm Knurled Groove, For Flux Cored
MSRP Price : $188.00
Drive Rolls Set
CW260911
Set of 4 Feed Rolls 0.035-0.045 Inch Or 09-1.1 mm U Groove For Aluminum
MSRP Price : $188.00
MIG Gun Tweco® Style Consumable Kits
ALPCON4001
MIG TORCH Tweco® Style 300A Consumable Standard Set
MSRP Price : $29.98
Catalogs & Videos
Area of Use / Weldable Metals
Area of Use
- •Aerospace Industrye
- •Automotive (Parts and Body Manufacturing)
- •Heavy and Medium-Duty Fabrication
- •Boat and Yacht Construction
- •Food and Beverage Equipment Manufacturing
- •Pharmaceutical and Medical Equipment
- •Pressure Vessels
- •Civil and General Construction
- •Railcar and Train Manufacturing
- •Service and Work Trucks
- •Vocational Training Schoolsg
- •Plumbing and HVAC Systems
- •Mechanical Contractors
- •Installation
- •Restoring
- •Maintenance and repair-field operation
- •Farm and Ranch
Weldable Metals
- Steel
- Stainless Steel
- Aluminium (with Spool Gun)
- Chrome Moly
- Titanium
- Copper
